How does digital guidance align a toric lens implant?

Why does the angle of a toric lens matter?

A toric lens corrects astigmatism in a particular direction, so its angle inside the eye is part of the prescription. Astigmatism means the eye's focusing power differs between directions. A toric implant is designed to counter the corneal component of that difference when the natural lens is removed during cataract surgery.

Turning the implant away from its intended axis reduces the intended correction and can leave unwanted astigmatism. The effect depends on both the amount of rotation and the strength of the toric correction: the same angular error matters more with a stronger toric lens.

Choosing a suitable implant comes before choosing a marking system. The guide to toric lens implants for astigmatism explains which eyes may benefit and why an irregular corneal shape can make planning less predictable.

Why can the eye turn when you lie down?

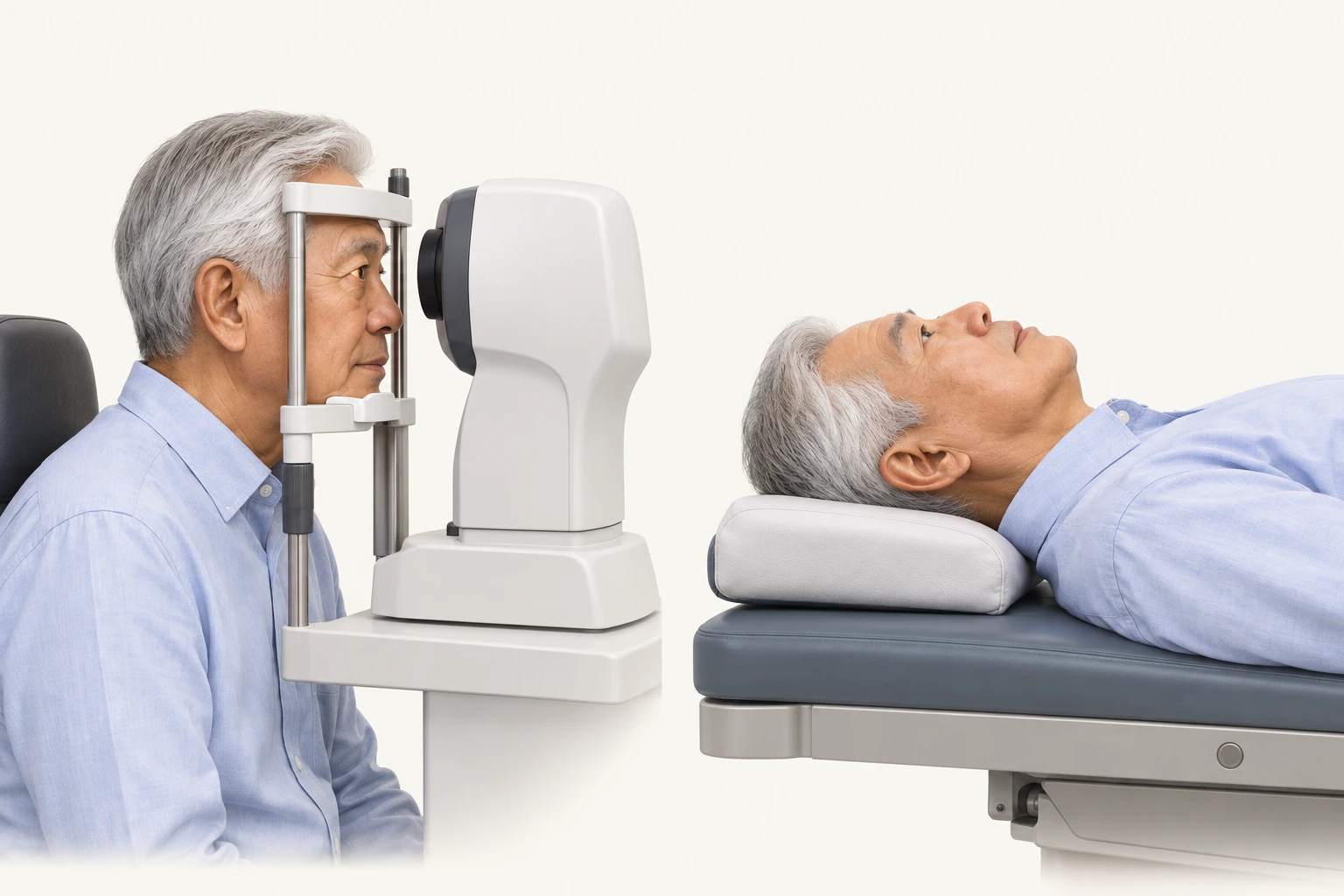

The eye can rotate slightly around the direction you are looking when you move from sitting upright to lying down. This is called cyclotorsion. It is a change in the orientation of the eye, not the implant rotating inside it.

Measurements made while you are sitting therefore need a reliable reference during surgery. Simply treating the operating-room horizontal as the eye's original horizontal could put the lens at the wrong angle. Both careful manual marking and image guidance are ways of carrying that reference from one position to the other.

+

How does image-guided registration work?

Registration means matching the eye in the operating microscope to its earlier reference image. Depending on the system, the software recognises features such as small blood vessels around the cornea, the edge of the cornea and iris details. These features provide an orientation reference.

The usual process is to capture a reference image before surgery, transfer the chosen surgical plan, check that the live eye and saved image match, and display the target axis over the microscope view. The surgeon then turns the toric implant until its alignment marks agree with the planned guide and checks its final position.

Some systems track movement and update the overlay during the operation. The surgeon remains responsible for checking the patient, eye, plan and registration, and for deciding whether the guidance is trustworthy. A coloured line is useful only if it is correctly matched to that eye.

+

1. Iris
2. Cataract, seen through the pupil
3. Capsule opening guide, 5.0 mm
4. Toric lens axis, 20°
5. Incision guide

Examples include ZEISS CALLISTO eye and Alcon VERION. Their exact inputs and displays differ. The website's technology guide describes CALLISTO eye in Dr Chen's practice; results from a study of another system are not a promise about an individual operation.

How does this compare with manual marking?

Manual marking uses small reference marks placed while the patient is upright, followed by an angular guide during surgery. Digital guidance uses the saved image as its reference and can avoid some ink-marking steps. Both approaches require careful technique.

Digital guidance is an additional surgical tool, rather than a reason on its own to have a toric lens or to reject an otherwise appropriate manual technique.

Does digital guidance give better results?

Several small comparative trials found smaller average alignment errors with digital guidance. A consistent improvement in unaided vision has been harder to demonstrate, and some trials found no statistically significant alignment difference.

In a 2017 randomised trial of 36 eyes, the average alignment error at three months was 1.7° with image guidance and 3.1° with manual marking. That advantage did not translate into a statistically significant difference in unaided distance vision or remaining astigmatism.

A more recent randomised trial of 76 patients reported average day-one alignment errors of 2.7° and 4.0°, respectively, without a statistically significant difference. It also found no significant difference in the reported one-month vision, remaining astigmatism or rotational stability outcomes. A non-significant result does not prove that two methods are identical.

The studies differ in marking technique, equipment, lens model, measurement method and follow-up. Many were small and followed patients for only weeks or months. Their results support digital guidance as a useful aid, without establishing that every patient will see better than with careful manual marking.

What can digital guidance not correct?

An alignment system cannot rescue an inaccurate prescription. The corneal measurements, the contribution of the back surface of the cornea, the anticipated effect of the incision and the selected lens power all influence the result. A dry or irregular eye surface can make measurements less reliable, so unexpected or inconsistent readings may need reassessment before surgery.

Image matching can also be difficult if the surface landmarks are unclear or have changed. For example, swelling or bleeding around the eye surface can interfere with some systems. If matching is unreliable, the surgeon needs to reassess it or use another dependable reference, rather than follow an uncertain overlay.

Digital marking does not eliminate the usual risks of cataract surgery, such as infection, inflammation or problems affecting the retina. It also does not choose the range of focus you want. The guide to lens implants available in Australia explains how lens design and visual goals affect that decision.

Can a correctly aligned lens rotate afterwards?

Yes. An implant can be in the planned position at the end of surgery and rotate later within the capsular bag, the thin membrane that supports it. This is separate from cyclotorsion and from an initial alignment error. Neither ink marks nor a digital overlay hold the lens in place after surgery.

If the result is not as expected, examination can assess the lens position and look for other causes before deciding what to do. Depending on the findings, options may include glasses or, in selected cases, an operation to reposition the lens. Another procedure has its own risks and is not needed for every small rotation or residual prescription.

What is useful to ask before surgery?

The most useful questions concern the whole plan: are the measurements consistent, how will the lens axis be checked, what happens if image matching is unreliable, and how will the result be assessed afterwards? It is also reasonable to ask what glasses you may still need. The separate guide to glasses after cataract surgery explains why alignment alone cannot guarantee independence from glasses.

The aim is a suitable lens, dependable measurements and careful surgery, supported by the marking method that can be used reliably in your eye.

When should I seek urgent help after surgery?

Severe or increasing eye pain, worsening redness, a sudden drop in vision, new flashes or floaters, or a curtain or shadow across your vision need urgent assessment. Contact your ophthalmologist urgently, or attend an emergency department. Do not assume a sudden change is simply a lens-alignment problem.
